AMASADORAS Y MEZCLADORAS SIMEM
AMASADORA DE DOBLE EJE HORIZONTAL
Model | 1500 | 2500 | 3000 | 3000S | 3700 | 4500 | 6000 | 6000S | 9000 | 12000 | 14000 |
---|---|---|---|---|---|---|---|---|---|---|---|
Dry Filling Capacity (lt) | 1500 | 2500 | 3000 | 3370 | 3700 | 4500 | 6000 | 6750 | 9000 | 12000 | 14000 |
Compacted Concrete - Output (Lt) | 1000 | 1700 | 2000 | 2250 | 2500 | 3000 | 4000 | 4500 | 6000 | 8000 | 9000 |
Compacted Concrete - Output (Kg) | 2400 | 4080 | 4800 | 5400 | 6000 | 7200 | 9600 | 10800 | 14400 | 19200 | 21600 |
Mixing Time - Wet Batch (Sec) | 30 | 30 | 35 | 35 | 35 | 35 | 35 | 35 | 40 | 40 | 40 |
Mixing Time - Dry Batch (Sec) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Discharge Time - Wet Batch (Sec) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Discharge Time - Dry Batch (Sec) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Standard Max Aggregate size (mm)* | 80 | 80 | 80 | 80 | 90 | 90 | 90 | 90 | 100 | 100 | 100 |
Dam Version Max Aggregate size (mm*) | 120 | 120 | 120 | 120 | 150 | 150 | 150 | 150 | 180 | 180 | 180 |
Mixing Motors (kW) | 1 x 37 | 2 x 30 | 2 x 37 | 2 x 44 | 2 x 44 | 2 x 55 | 2 x 75 | 2 x 90 | 4 x 55 | 4 x 75 | 4 x 90 |
Hydraulic Discharge Motor (kW) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 7.5 | 7.5 | 7.5 |
Loading Skip Motor (kW) | 11 | 22 | 22 | 22 | 37 | 37 | 55 | 55 | - | - | - |
Skip Speed (Mt/Min) | 23 | 23 | 23 | 23 | 25 | 25 | 22 | 22 | - | - | - |
Net Weight Without Skip (Kg) | 5.500 | 6.000 | 6.900 | 6.900 | 9.100 | 10.090 | 11.650 | 11.650 | 17.500 | 24.000 | 26.200 |
Net Weight With Skip (Kg) | 6.500 | 7.200 | 8.200 | 8.200 | 14.700 | 15.690 | 17.550 | 17.550 | - | - | - |
SIMEM MSO Twin Shaft Mixers are available in a wide range of models, from 1 to 9 cubic meters compacted output; suitable to mix any type of concrete, to wet to zero slump, with aggregates up to
200 mm in diameter.
Each model is available in a wide range of varieties to suit every customer’s requirement. In addition to the standard HL version, the following versions are also available:
• TWIX: dual discharge gate;
• DAM: version for use with larger aggregate.
SIMEM MSO Twin Shaft Mixers are designed to ensure reliability and reduced service and maintenance costs.
AMASADORA MEZCLADORA PLANETARIA
Through the revolutionary and innovative design of the XENTRIX mixer, SIMEM has added yet another excellent choice to the product line up. With features like central cement and water inlet as well as modular design, the XENTRIX has taken the planetary mixers to a new level making it not only into the natural choice for concrete production, but also extremely suitable for treatment of industrial waste, production of glass, mixing of chemicals, etc.
|
|
|
|
|
Model | X750 | X2000 | X2500 | X4000 | X4500 |
---|---|---|---|---|---|
Dry filling capacity (ltr) |
750 | 1875 | 2250 | 3750 | 4500 |
Compacted concrete output (ltr) |
500 | 1250 | 1500 | 2500 | 3000 |
Side scraper | 1 | 2 | 2 | 2 | 2 |
Main mixing stars | 1 | 2 | 2 | 2 | 2 |
Paddles per mixing stars | 3 | 3 | 3 | 3 | 3 |
Secondary mixing stars | 0 | 0 | 0 | 2 | 2 |
Paddles per secondary star | 0 | 0 | 0 | 2 | 2 |
Mixer drive motors (kW) | 22 | 2 x 22 | 2 x 30 | 3 x 30 | 3 x 37 |

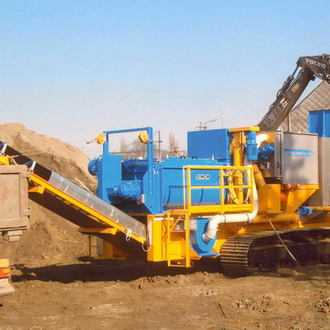

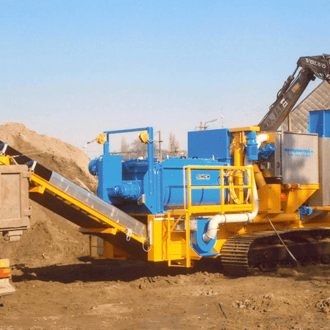

MEZCLADORAS SIMEM DE FLUJO CONTINUO PARA GRAVA-CEMENTO O GRAVA-EMULSION
SIMEM MDC Continuous Flow Mixer adopts the twin shaft technology and is especially designed for Zero Slump Concrete and Roller Compacted Concrete(RCC). However, with special versions they have
proven very useful for pumpable slurries, mine backfill and in applications for treatment of industrial solid waste. The MDC are offered in two main models, MDC200 and the MDC500. Both
models
can be delivered with different options, for instance mining, side overflow discharge, extended tank, tank in stainless steel and special solutions for water and material introduction.

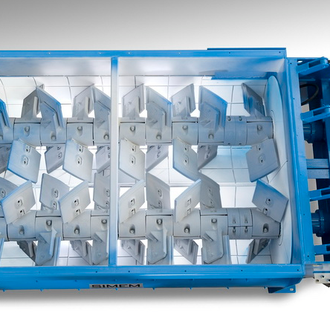

The SIMEM MDC mixing tank is completely protected with special anti-wear liners. The mixing action is performed by cast iron paddles, which are hydro-dynamically designed to reduce wear and
provide optimized mixing results.
All paddles are bolted onto the mixing arms, which are in turn bolted onto the mixing shaft for easier service and maintenance.
The special design of the mixing arms allows them to be installed in different configurations to create a flow of materials inside the mixing tank, this ensures an optimal mixing result.
AUTOMATIC GREASING SYSTEM
The Automatic Greasing System is an option for the MDC mixers and includes a grease pump that gives a pressure of up to 200 bar
